Takraf TSM 300 Surface Miners Tender

Closes
Inspection Strictly by appointment only
Location Yandi Mine Site
Pilbara, WA
Contact Matthew Kalinski 0418 488 011 Email

Tender Documents

Filename File Size
takraf_tender_2018_v104.pdf 1.06 MB
inventory_list.pdf 324.24 KB

Buyers Premium & GST

A buyer's premium of 5.00% applies to this tender.
This tender is GST exclusive

Place Tender Bid
On behalf of BHP we have been instructed to sell by way of public tender, two Takraf TSM 300 Surface Miners located at Yandi Mine Site Western Australia and TakRaf Spares & Inventory Located at our Welshpool Office.

Please refer to the tender document for full details.

Tender Lot 1

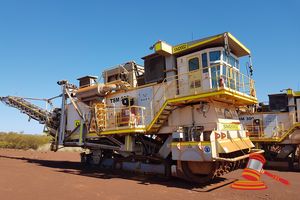

2009 TENOVA TAKRAF TSM300 SURFACE MINER,
MACHINE HOURS: 361 HRS
ASSET NUMBER: SM2001
SERIAL NUMBER: 13801
MATERIAL: IRON ORE,
UNCONFIRMED COMPRESSIVE STRENGTH: UP TO 60 MPa,
RATED CAPACITY: 172 bm3/H,
PEAK CAPACITY: 450 bm3/H,
CUTTING CIRCULAR DIAMETER: 1.6M,
DRUM WIDTH: 3.75M,
CUTTING RATE: MAX. 5 m/s,
NOMINAL DRIVE POWER AT THE DRUM: 2X 240kW,
MAX CUTTING HEIGHT: 0.8M,
MAX CUTTING WIDTH: 3.8M,
DRIVING SPEED AT RATED CAPACITY AND MAX CUTTING HEIGHT: 1.67 M/min,
NUMBER OF CRAWLERS: 3,
AVERAGE GROUND PRESSURE: APPROX. 127 kPa,
DRIVING SPEED: 0-20 M/min,
OUTREACH LOADING BOOM: 12.9M,
MAX. HEIGHT DISCHARGE PULLEY: APPROX. 6.9M,
TOTAL INSTALLED POWER: 839kW,
SERVICE WEIGHT: APPROX. 125.5t

Tender Lot 2
2009 TENOVA TAKRAF TSM300 SURFACE MINER,
MACHINE HOURS: 183 HRS
ASSET NUMBER: SM2002
SERIAL NUMBER: 13802
MATERIAL: IRON ORE,
UNCONFIRMED COMPRESSIVE STRENGTH: UP TO 60 MPa,
RATED CAPACITY: 172 bm3/H,
PEAK CAPACITY: 450 bm3/H,
CUTTING CIRCULAR DIAMETER: 1.6M,
DRUM WIDTH: 3.75M,
CUTTING RATE: MAX. 5 m/s,
NOMINAL DRIVE POWER AT THE DRUM: 2X 240kW,
MAX CUTTING HEIGHT: 0.8M,
MAX CUTTING WIDTH: 3.8M,
DRIVING SPEED AT RATED CAPACITY AND MAX CUTTING HEIGHT: 1.67 M/min,
NUMBER OF CRAWLERS: 3,
AVERAGE GROUND PRESSURE: APPROX. 127 kPa,
DRIVING SPEED: 0-20 M/min,
OUTREACH LOADING BOOM: 12.9M,
MAX. HEIGHT DISCHARGE PULLEY: APPROX. 6.9M,
TOTAL INSTALLED POWER: 839kW,
SERVICE WEIGHT: APPROX. 125.5t

Tender Lot 3

2x 20' Containers of Spares + 1 Additional Crate.  For full details download spares list document contained in this tender.
