Closes | 04:00pm Friday, 21/04/17 |
---|---|
Inspection | As per tender document 28th March to 31st March. Attendees will be required to register for inspection. |
Location | On site 1 Richardson Street, Port Hedland, WA 6721 |
Contact | Matthew Kalinski +61418488011 Email |
---|
Tender Documents
Filename | File Size |
---|---|
tender_document_v13_7_3_2017.pdf | 0 B |
class_and_bollard_certs.pdf | 0 B |

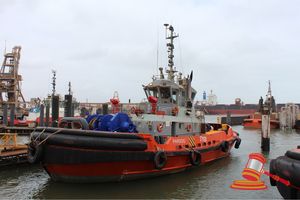

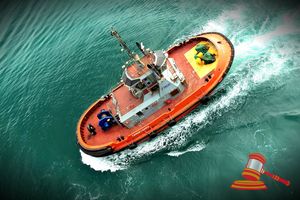

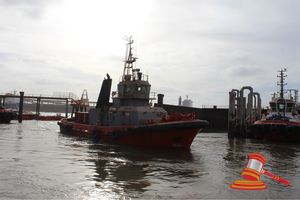

Under instructions from BHP Billiton Towage Services Pty Ltd, offers are invited for the purchase and removal of a fleet of Z-Tech tugs located in Port Hedland, Western Australia. Offers can be made on one or more of the following vessels.
* FURTHER REPORTS CAN BE FOUND HERE *
Reports Added 5/4/2017,
3 Additional Reports added to Indee folder on 6/4/2017
Oil Sample Reports added 7/4/2017
Asbestos Reports Collated and Added 13/4/2017
OFFICIAL INSPECTION REGISTRATIONS HAVE CLOSED; IF YOU WISH TO INSPECT THE VESSELS PLEASE CONTACT matt@auctions.com.au
Please note, the descriptions below indicate the current due dates on equipment which have been updated since the survey reports were conducted.
IMO NO – 9289635
Builder: Cheoy Shipyards
Built: 2004
Length (OA): 27.4m
Breadth (MLD): 11.5m
Depth (MLD): 5.03m
Draft (MAX/Operating): 5.2m
Service Category (Class): USL 2B/ Lloyd’s Register
Operating Area: 200NMiles Offshore
No. of Certificate of Survey ID: 81008
Crew/Passenger Numbers: 3 Crew / 7 passengers
Equipment Due: 27/6/2017
Hull Due: 9/02/2016
Tailshaft Due: Not Applicable
Nett Reg. Tonnage: 97
Gross Tonnage: 325
Max Loaded Displacement: 584 tonnes
Service Speed: 12 knots
Bollard Pull: 70.1T
Main Engines: 2x CAT 3516B (1864kw), Hours: 26341
Schottel Azimuthing Units, fixed pitch Propellor
Model: SRP1215
IMO NO – 9284647
Builder: Cheoy Shipyards
Built: 2004
Length (OA): 27.4m
Breadth (MLD): 11.5m
Depth (MLD): 5.0m
Draft (MAX/Operating): 5.2m
Service Category (Class): USL 2B/ Lloyd’s Register
Operating Area: 200NMiles Offshore
No. of Certificate of Survey ID: 81007
Crew/Passenger Numbers: 3 Crew / 7 Passengers
Equipment Due: 27/6/2017
Hull Due: 02/06/2017
Tailshaft Due: 06/2019
Nett Reg. Tonnage: 97 Gross
Tonnage: 325 Max Loaded
Displacement: 584 tonnes
Service Speed: 12 knots
Bollard Pull: 61.75
Main Engines: 2x CAT 3516B-HD (1864kw), rebuilt 2014,
Hours: 26350.
Schottel Azimuthing Units, fixed pitch Propellor Model: SRP1215
IMO NO – 9487134
Builder: Cheoy Shipyards
Built: 2008
Length (OA): 27.4m
Breadth (MLD): 11.5m
Depth (MLD): 5.03m
Draft (MAX/Operating): 5.2m
Service Category (Class): USL 2B/ Lloyd’s Register
Operating Area: 200NMiles Offshore
No. of Certificate of Survey ID: 81012
Crew/Passenger Numbers: 3 Crew / 7 passengers
Equipment Due: 27/6/2017
Hull Due: 22/06/2018
Tailshaft Due: 06/2018
Nett Reg. Tonnage: 98
Gross Tonnage: 327
Max Loaded Displacement: 526.91 tonnes
Service Speed: 12 knots
Bollard Pull: 64.8T
Main Engines: 2x CAT 3516B (1864kw), Major Overhaul Oct 2015,
Hours: 19906
Schottel Azimuthing Units, fixed pitch Propellor
Model: SRP1215
IMO NO – 9449053
Builder: Cheoy Shipyards
Built: 2007
Length (OA): 27.4m
Breadth (MLD): 11.5m
Depth (MLD): 5.0m
Draft (MAX/Operating): 4.8m
Service Category (Class): USL 2B/ Lloyd’s Register
Operating Area: 200NMiles Offshore
No. of Certificate of Survey ID: SDS9449053
Crew/Passenger Numbers: 3 Crew
Equipment Due: 16/1/2017
Hull Due: 22/12/2017
Tailshaft Due: 01/2018
Nett Reg. Tonnage: 98
Gross Tonnage: 327
Max Loaded Displacement: 516.3 tonnes
Service Speed: 12 knots
Bollard Pull: 57.4
Main Engines: 2x CAT 3516B (1864kw), 10,456 hours since rebuild,
Hours: 20738.
Schottel Azimuthing Units, fixed pitch Propellor
Model: SRP1215
